| Travel |

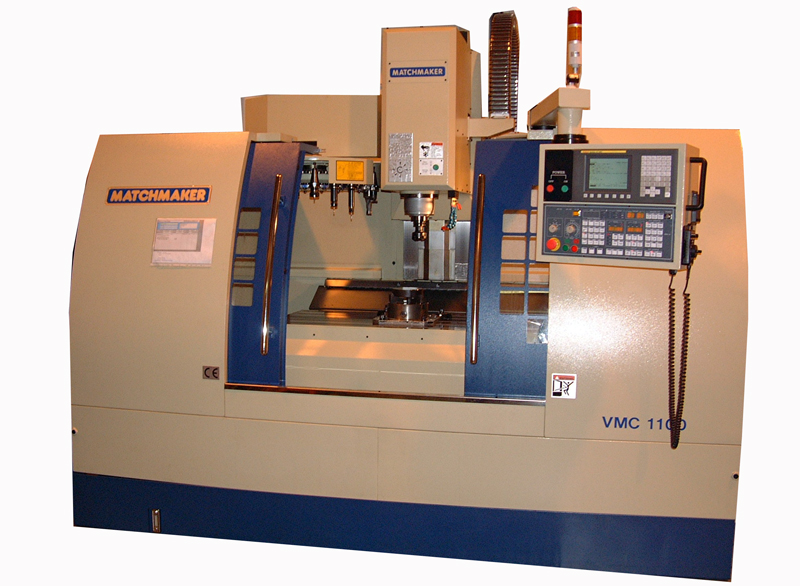

VMC 1100 |
|
| X - axis |
1100mm |
|
| Y - axis |
550mm |
|
| Z - axis |
600mm |
|
| Spindle Nose to Table |
200-800mm |
|
|
|
|
| Table |
|
|
| Size |
1300x520mm |
|
| T-slots (size x number) |
18mm x 5 |
|
| Max weight on table |
1000kg |
|
|
|
|
| Spindle |
|
|
| Spindle speed |
10,000 rpm |
|
| Spindle taper |
BT40 |
|
| Transmission |
Direct speed, belt drive |
|
| Spindle motor |
Fanuc alpha 12 (11/15)kw |
|
| Spindle to the column ways |
580mm |
|
|
|
|
| Feedrates |
|
|
| Rapid Feed Rate X, Y |
18.0 m/min |
|
| Rapid Feed Rate Z |
12.0 m/min |
|
| Ballscrew dia & pitch |
Ø40 x 10 |
|
|
|
|
| Axis motors |
|
|
| Axis drive motor (X/Y/Z) |
Fanuc alpha c12 |
|
| Axis motor thrust rating |
1.0kw |
|
|
|
|
| ATC |
|
|
| ATC number of tools |
20 / 24 |
|
| Max tool weight |
6kg |
|
| Max tool diameter |
100mm |
|
| Max tool length |
250mm |
|
| Spindle Taper |
BT 40 |
|
|
|
|
| Accuracy |
|
|
| Axis positioning (at 20°C) |
+- 0.005mm Full stroke |
|
| Axis repeatability (at 20°C) |
+-0.0025mm |
|
|
|
|
| Other |
|
|
| Air pressure requirement |
7 bar |
|
| Machine width x depth |
3020mm x 2780mm |
|
| Machine weight |
6000kg |
|
| Coolant pump |
520w |
|
| Coolant tank capacity |
200ltrs |
|
| Total power consumption |
3phase, 32 AMPS,440VAC |
|
|
|
|
| |
|
