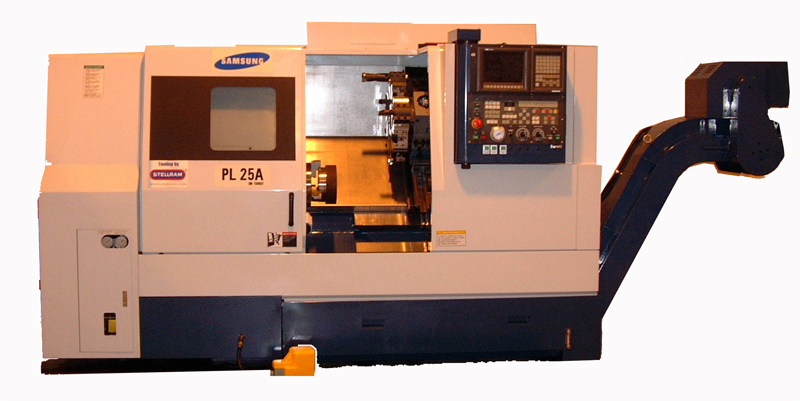

Samsung PL 25A CNC Lathe

Capacity
PL25A 500mm
Distance between centres
625/
Maximum machining diameter
350
Maximum machining length
530
Travel
X-axis
220
Z-axis
590
Spindle
Chuck size
260
Spindle speed
35 - 3,500
Bore diameter
80 Bar 65mm
Turret
Number of tool positions
10
Shank size of square tool
25
Shank diameter of boring tool
50
Indexing time
0.2 sec
Feedrate
Rapid traverse (X/Z)
18 m/min
Tailstock
Tailstock travel
490
Tailstock spindle diameter
85
Taper of tailstock spindle
MT 5 Live
Tailstock spindle travel
80
Motors
Spindle drive motor
15Kw
