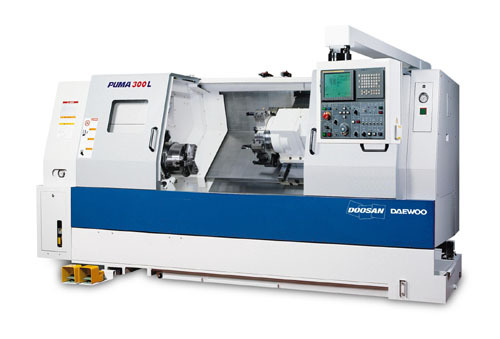

Doosan Puma 300 Long Bed

Capacity
300 LB
Distance between centres
1300mm
Maximum machining diameter
300mm
Maximum machining length
1300mm
Travel
X-axis
360mm
Z-axis
1380mm
Spindle
Chuck size
300
Spindle speed
35 - 3,500
Bore diameter
80 Bar 65mm
Turret
Number of tool positions
10
Shank size of square tool
25
Shank diameter of boring tool
50
Indexing time
0.3 sec
Feedrate
Rapid traverse (X/Z)
22 m/min
Tailstock
Tailstock travel
Program
Tailstock spindle diameter
100
Taper of tailstock spindle
MT 5 Live
Tailstock spindle travel
80
Motors
Spindle drive motor
22Kw
